E36 MK60 ABS pump adapter soft lines

*For Offroad use only*

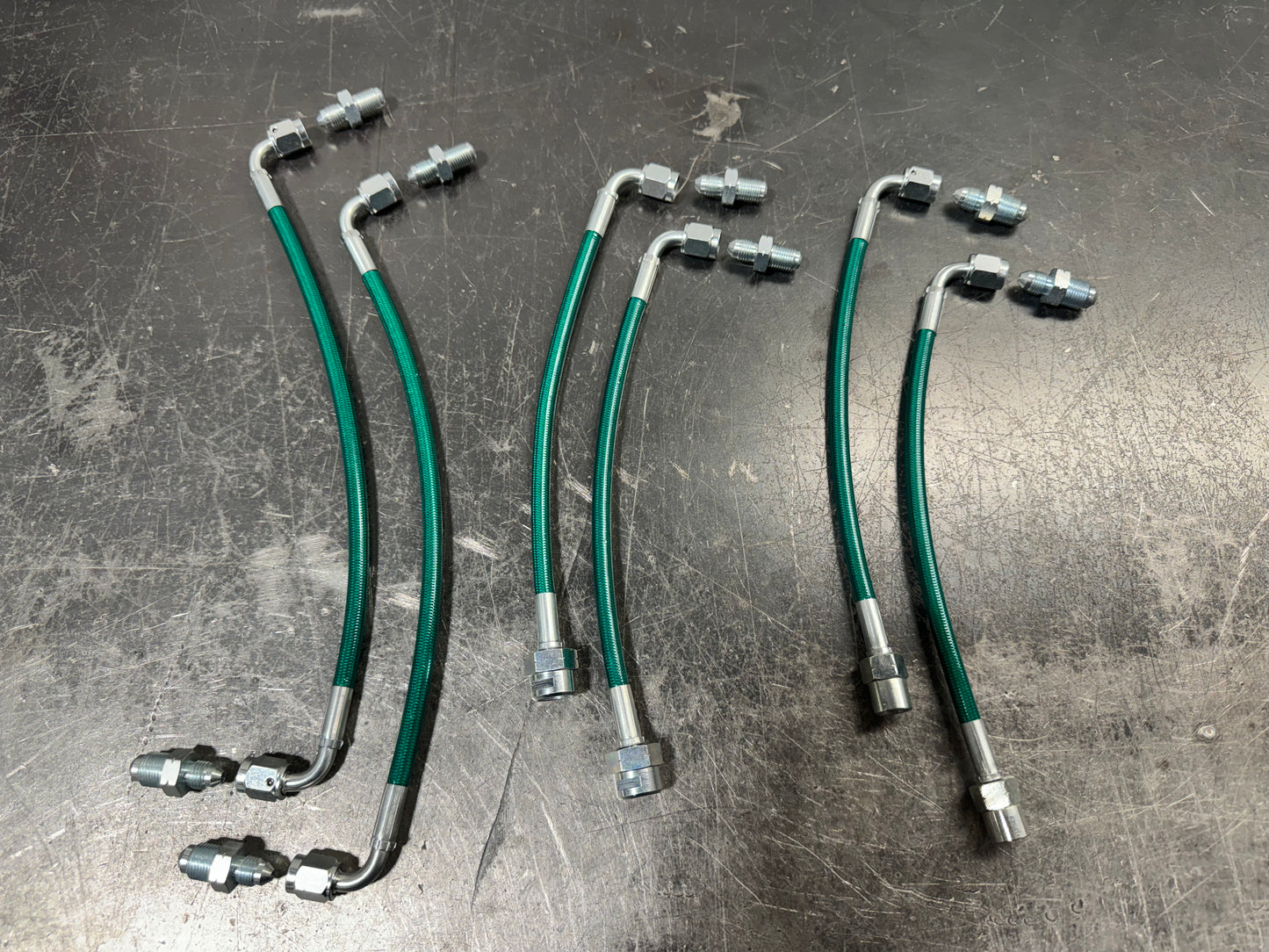

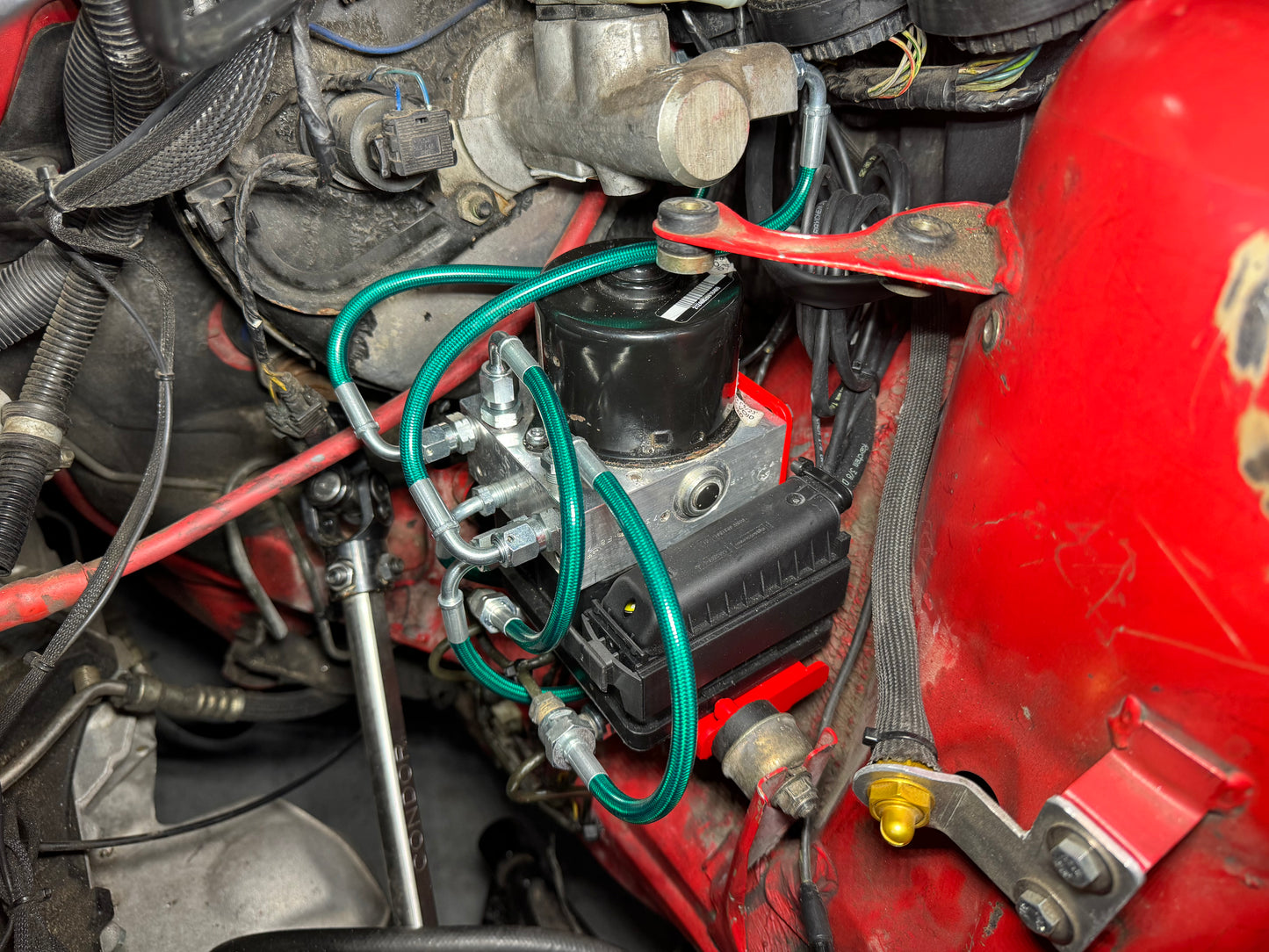

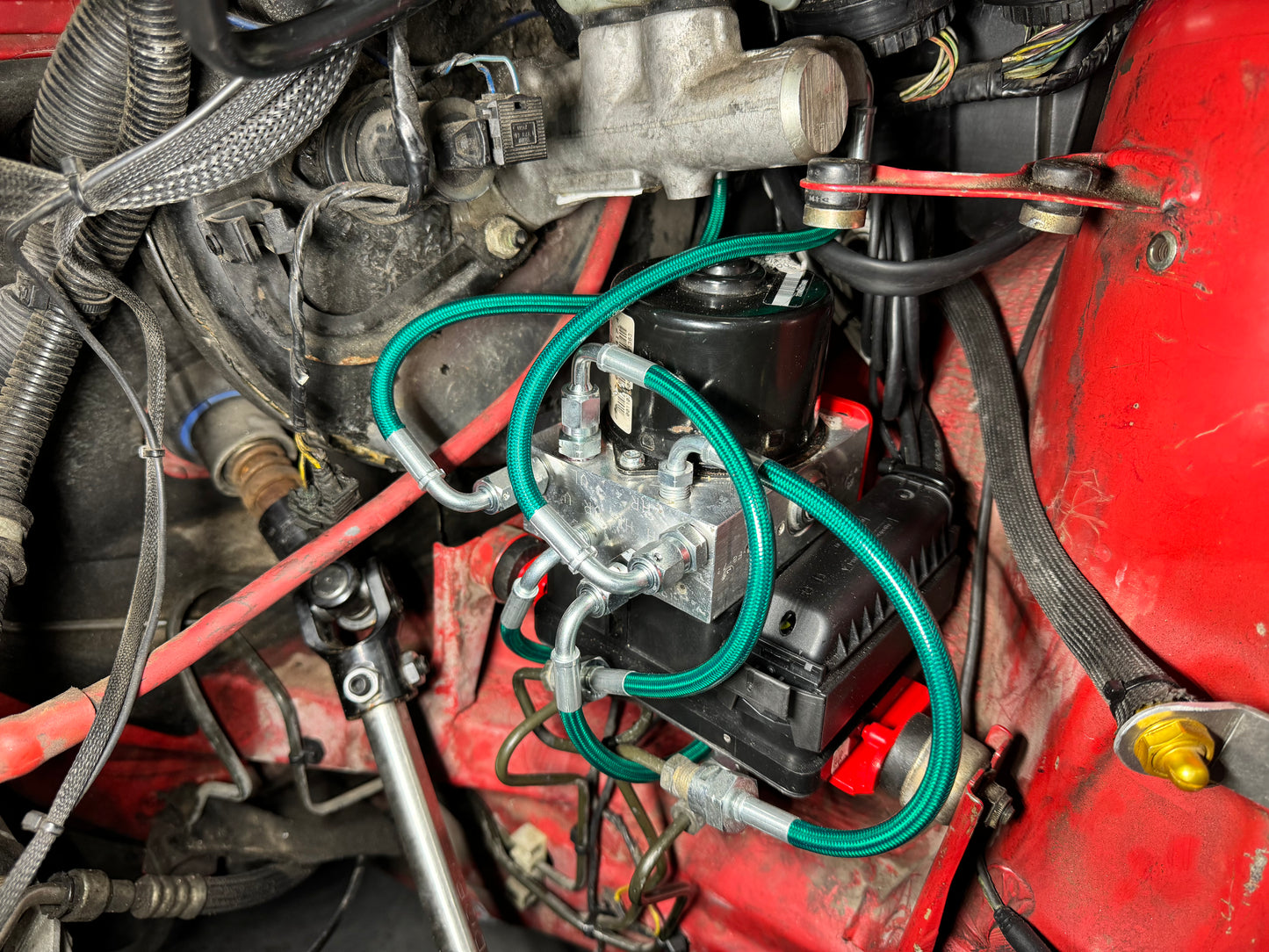

6 stainless steel braided soft lines to adapt an MK60 ABS pump into an E36.  Includes 2 lines from the brake master cylinder to the pump, 4 lines from the ABS pump to the vehicle hardlines which require some modification, and adapters. These lines are designed around our MK60 mounting bracket, if you mount it differently there's a chance the lines won't be long enough.

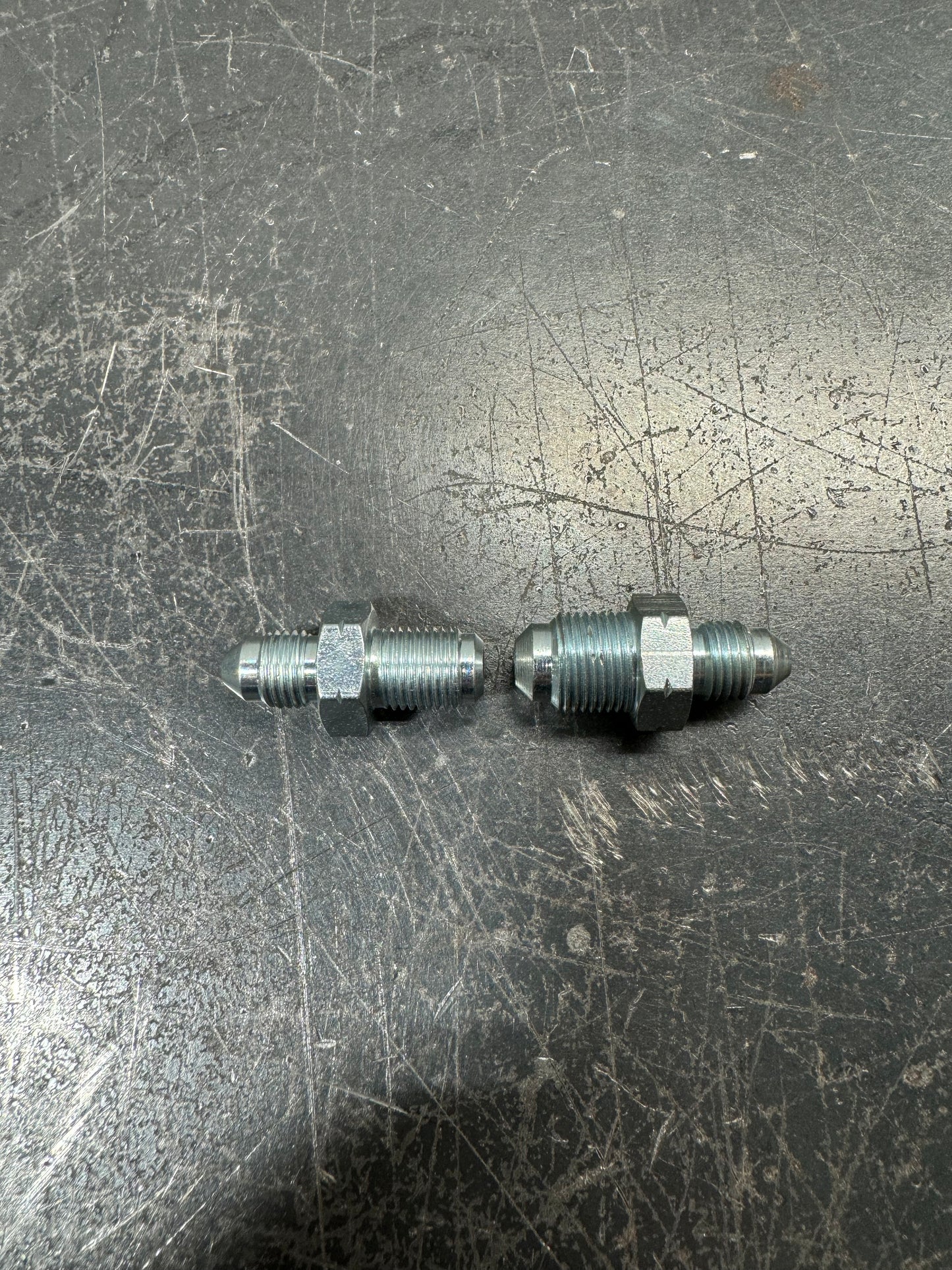

Installation: Always make sure there's space between the hex on the Metric to AN adapter and the ABS pump and brake master cylinder.  If the hex bottoms out on the pump or master cylinder contact us.

NOTE: These lines now have a black sheathing, not green.

MK60/MK60E1/MK60E5 ABS pump
V=Front(F) M12, from master cylinder
H=Rear(R) M12, from master cylinder
VR=Front Right(FR) M10
HR=Rear Right(RR) M10
HL=Rear Left(RL) M12
VL= Front Left(FL) M12

All E36 Master Cylinder
Front: M10(closer to firewall)
Rear: M10

All E46 M3 Master Cylinder
Front: M12(Closer to firewall)
Rear: M12

1995 E36 hardlines at pump
FR(VR): M10
R(H): M10(single line/3 channel)
FL(VL): M10
Our preferred method to convert to 4 channel MK60 is to run 2 new hardlines to the rear from a 96-99(see PN below).

1996-1999 E36 M3 hardline at pump
FR(VR): M12
RR(HR): M12(hardline PN:34326755526)
RL(HL): M10(hardline PN:34326755686)
FL(VL): M10

Up to 09/1996 328 E36 hardline at pump
FR(VR): M12
RR(HR): M12
RL(HL): M10
FL(VL): M10

After 09/1996 328 E36 hardline at pump
FR(VR): M10
RR(HR): M10
RL(HL): M12
FL(VL): M12
