E36 MK60/MK60E1 ABS pump bracket
E36 MK60/MK60E1 ABS pump bracket
Couldn't load pickup availability
This bracket allows an MK60 and MK60E1 ABS pump to bolt into your E36 chassis where the factory 3 or 4 channel pump was. This will not work with an MK60E5 ABS pump(we're working on a design for these). You will need to re-use 3 rubber mounting grommets from your old ABS pump(PN:34-51-1-150-134) and the front bushing mounting cup(PN: 34-51-1-150-132) for 96-99. You will need to re-use 2 rubber mounting grommets from your old ABS pump(PN:34-51-1-150-134) for 92-95. This does not include brake hoses to plumb the ABS pump to the master cylinder or to the brake hard lines. *These brackets are now powder coated black.*

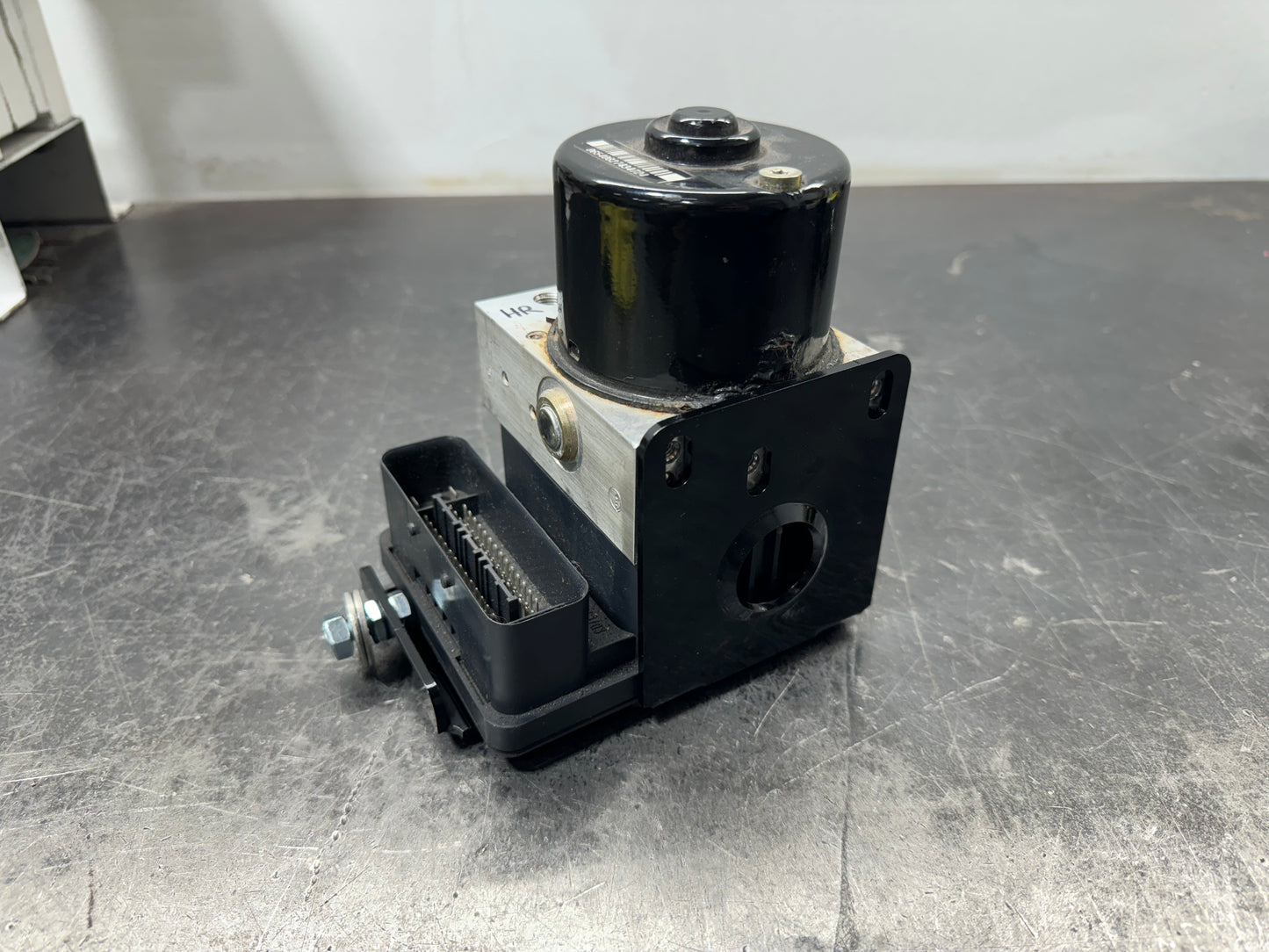

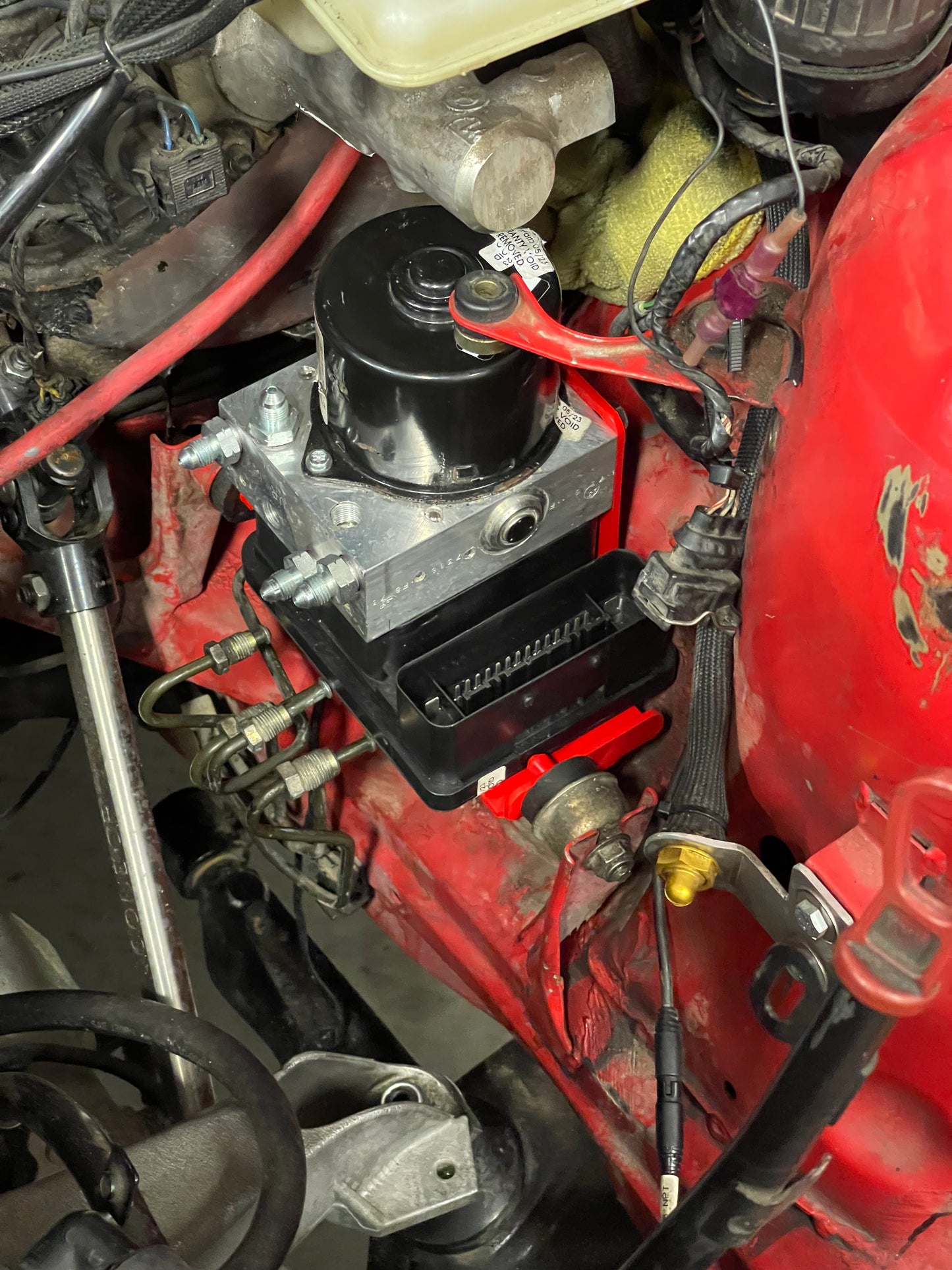

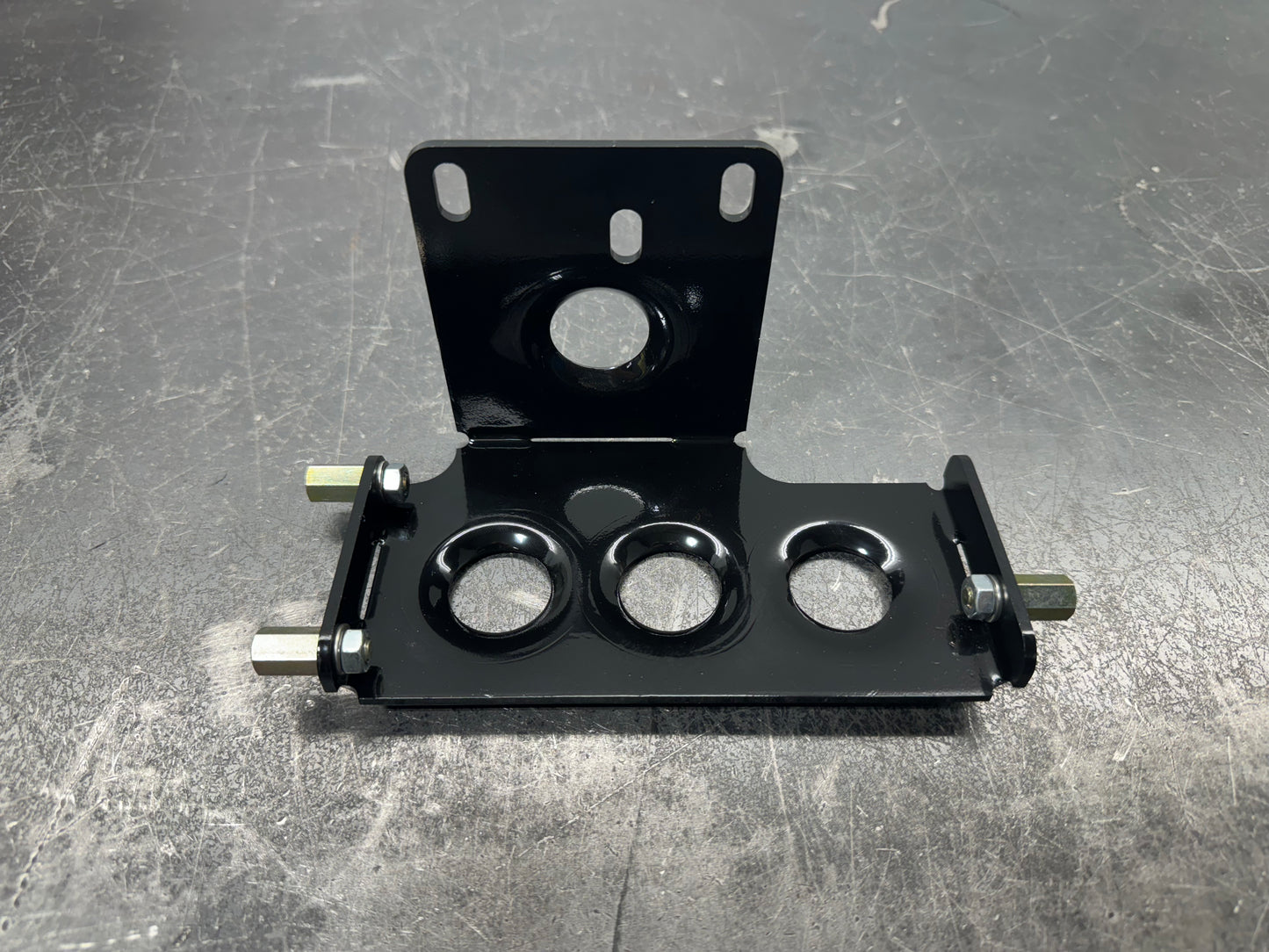

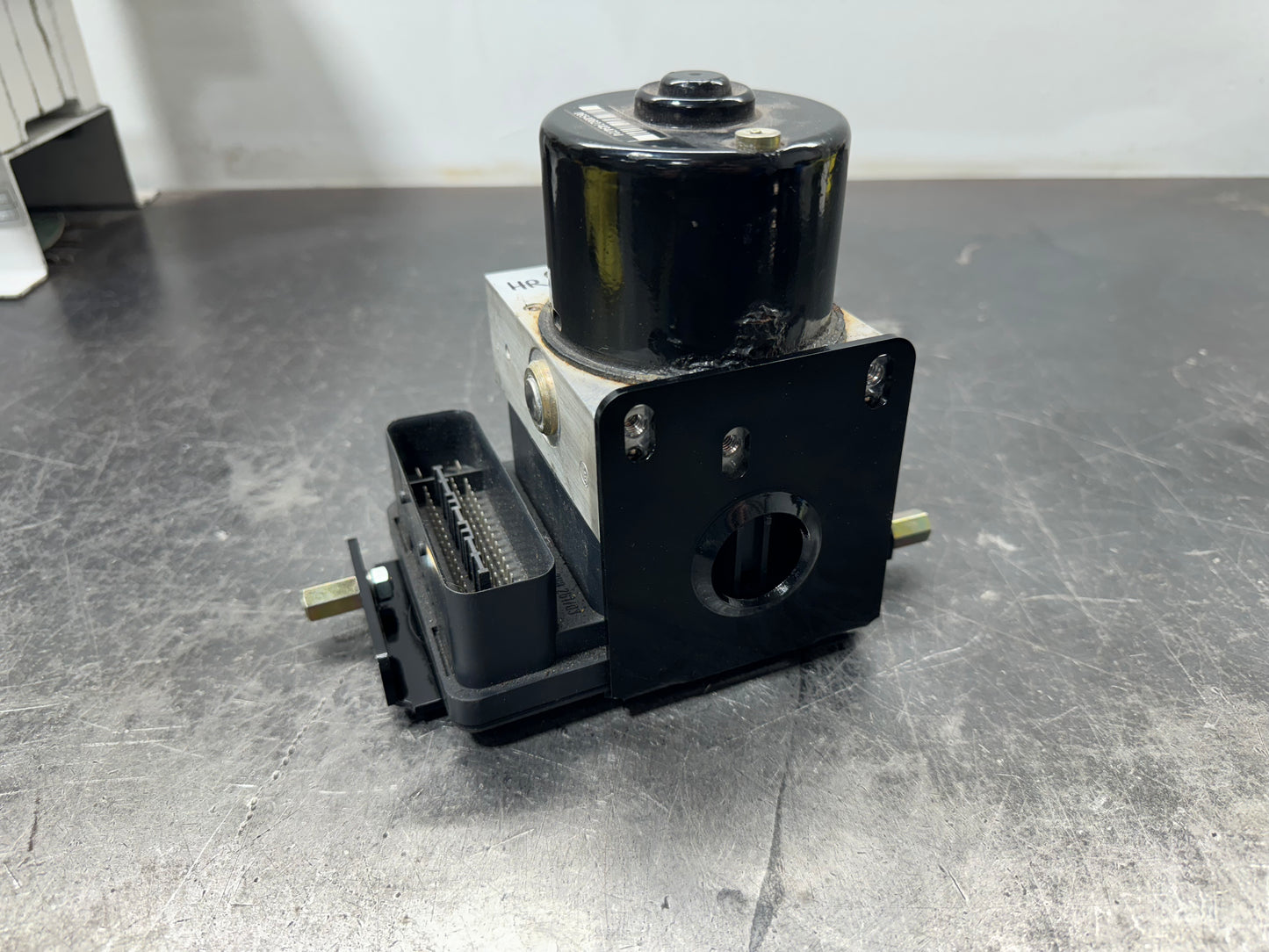

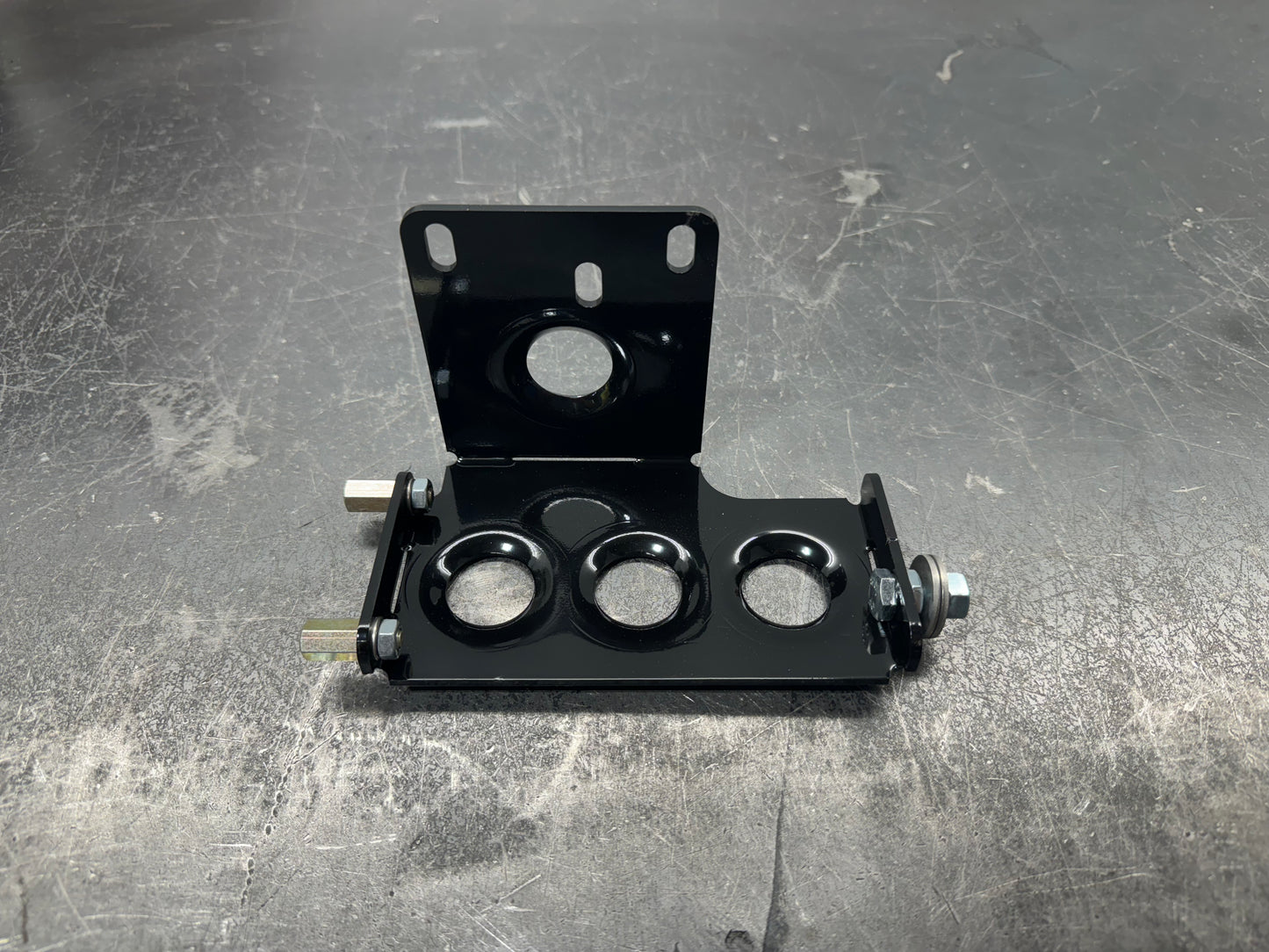

Photos 1-2 are the 92-95 bracket, photos 3-5 are the 96-99 bracket.
